Crossed roller slewing bearing
The single-row crossed roller slewing bearing is composed of two seat rings. It has a compact structure, light weight, small assembly clearance, and high requirements for installation accuracy. The rollers are arranged in a 1:1 cross and can withstand axial force, overturning moment and large radial force at the same time. It is widely used in lifting and transportation, engineering machinery and military products.
Contact Us
Product Description


(11 series)





Note
1,n1is the number of lubricating oil holes. oil cupM10x1JB/T7940.1~JB/T7940.
2According to the application conditions, the user can specify the position of the oil hole,n-φ can be changed to threaded hole, thread diameterM, thread depth 2M
3, The gear circumferential force in the table is the maximum circumferential force, and the rated circumferential force is taken as1/2.
4,"k” is the topping coefficient.
5, The specifications in this sample are standard products,Both inner and outer diameters are free tolerances. If there are cooperation requirements between the host machine and the slewing bearing, please specify them in the contract or contract attachments.(Such as technical agreement)Indicate the fit size and accuracy.
6. The products listed in the table are our company’s regular products. If you have other special requirements, please contact our company.

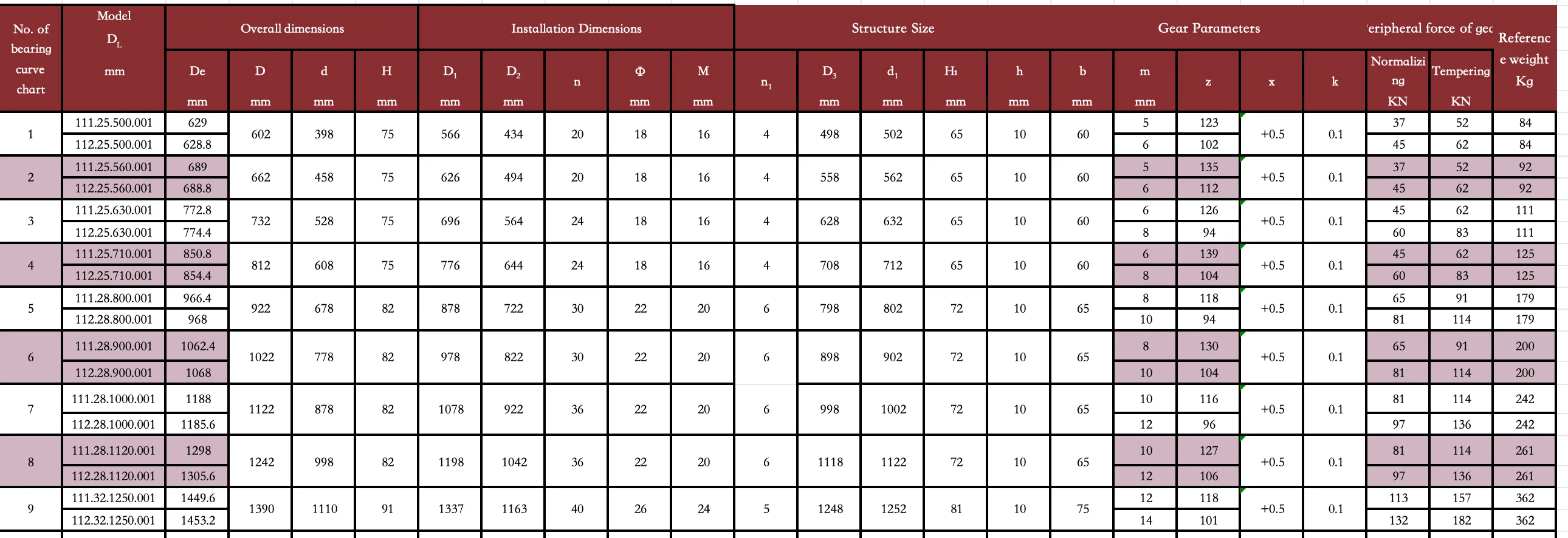

No.  Model Overall dimensions Installation Dimensions Structure Size Gear Parameters Peripheral force of gear Reference weight
De D d H D1 D2 n φ M n1 D3 d1 H1 h b m z x k Normalizing Tempering Kg
mm mm mm mm mm mm mm mm mm mm mm mm mm mm KN  KN
1 111.25.500.001 629 602 398 75 566 434 20 18 16 4 498 502 65 10 60 5 123 0.5 0.1 37 52 84
112.25.500.001 628.8 6 102 45 62 84
2 111.25.560.001 689 662 458 75 626 494 20 18 16 4 558 562 65 10 60 5 135 0.5 0.1 37 52 92
112.25.560.001 688.8 6 112 45 62 92
3 111.25.630.001 772.8 732 528 75 696 564 24 18 16 4 628 632 65 10 60 6 126 0.5 0.1 45 62 111
112.25.630.001 774.4 8 94 60 83 111
4 111.25.710.001 850.8 812 608 75 776 644 24 18 16 4 708 712 65 10 60 6 139 0.5 0.1 45 62 125
112.25.710.001 854.4 8 104 60 83 125
5 111.28.800.001 966.4 922 678 82 878 722 30 22 20 6 798 802 72 10 65 8 118 0.5 0.1 65 91 179
112.28.800.001 968 10 94 81 114 179
6 111.28.900.001 1062.4 1022 778 82 978 822 30 22 20 6 898 902 72 10 65 8 130 0.5 0.1 65 91 200
112.28.900.001 1068 10 104 81 114 200
7 111.28.1000.001 1188 1122 878 82 1078 922 36 22 20 6 998 1002 72 10 65 10 116 0.5 0.1 81 114 242
112.28.1000.001 1185.6 12 96 97 136 242
8 111.28.1120.001 1298 1242 998 82 1198 1042 36 22 20 6 1118 1122 72 10 65 10 127 0.5 0.1 81 114 261
112.28.1120.001 1305.6 12 106 97 136 261
9 111.32.1250.001 1449.6 1390 1110 91 1337 1163 40 26 24 5 1248 1252 81 10 75 12 118 0.5 0.1 113 157 362
112.32.1250.001 1453.2 14 101 132 182 362
10 111.32.1400.001 1605.6 1540 1260 91 1487 1313 40 26 24 5 1398 1402 81 10 75 12 131 0.5 0.1 113 157 417
112.32.1400.001 1607.2 14 112 132 182 411
11 111.32.1600.001 1817.2 1740 1460 91 1687 1513 45 26 24 5 1598 1602 81 10 75 14 127 0.5 0.1 132 182 488
112.32.1600.001 1820.8 16 111 151 224 484
12 111.32.1800.001 2013.2 1940 1660 91 1887 1713 45 26 24 5 1798 1802 81 10 75 14 141 0.5 0.1 132 182 530
111.32.1800.001 2012.8 16 123 151 224 530
13 111.40.2000.001 2268.8 2178 1825 112 2110 1891 48 33 30 8 1997 2003 100 12 90 16 139 0.5 0.1 181 250 935
112.40.2000.001 2264.4 18 123 203 281 935
14 111.40.2240.001 2492.8 2418 2065 112 2350 2131 48 33 30 8 2237 2243 100 12 90 16 153 0.5 0.1 181 250 1008
112.40.2240.001 2498.4 18 136 203 281 1008
15 111.40.2500.001 2768.4 2678 2325 112 2610 2391 56 33 30 8 2497 2503 100 12 90 18 151 0.5 0.1 203 281 1147
112.40.2500.001 2776 20 136 226 313 1147
